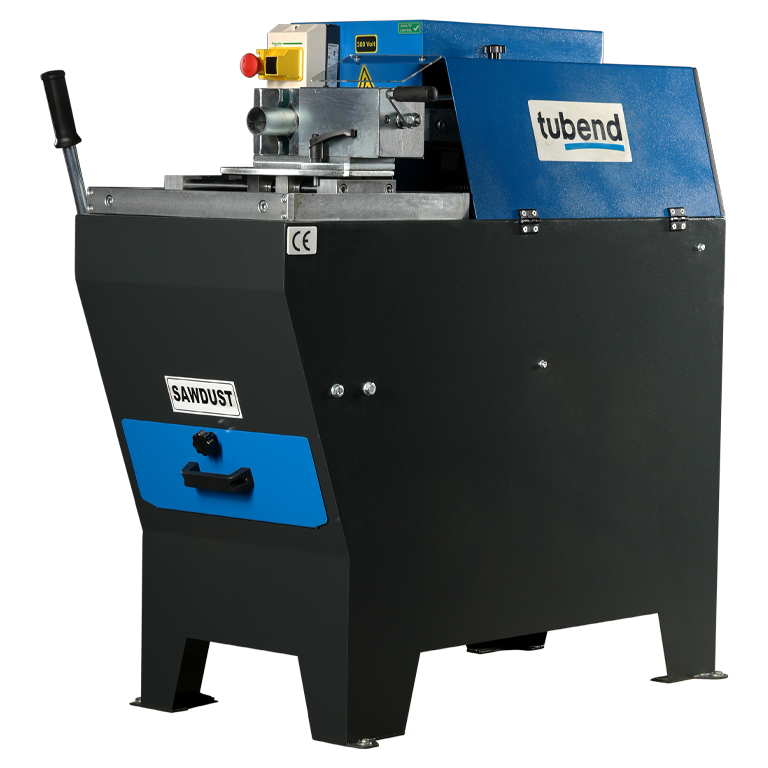

TT 90
Pipe Notching Machine
Standard Accessories
- Ability to open suitable dovetails according to the diameter of the pipe and pro le with the help of processing drum
- Ability to tighten and loosen the parts quickly as a result of moving clamp
- Ability of clamp to move right and left sideways
- With movable clamp, notching up to 50° degrees angle
- Adjustable speed with inverter
- Notching operation up to 3″ pipe
- Optional pneumatic vice

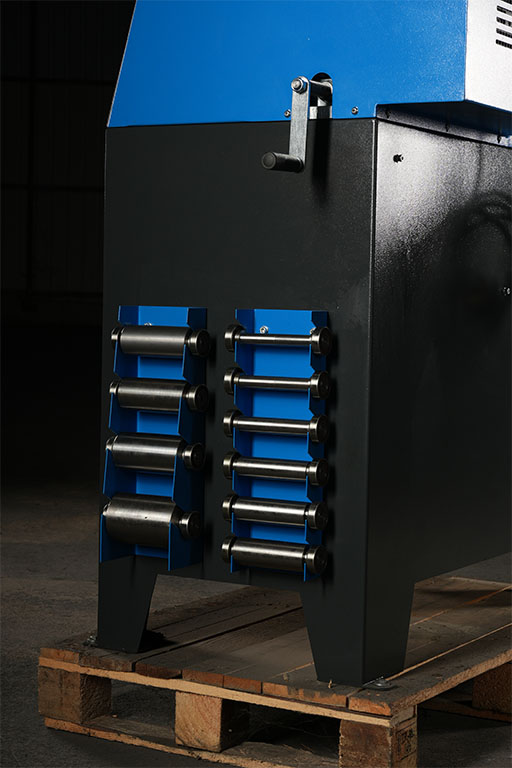

- Ø19, Ø21, Ø25, Ø32, Ø38, Ø42, Ø48, Ø52, Ø60, Ø76 rolls standard
| Model | TT 90 | |
|---|---|---|
| Clamp Capacity | Ømm | 16-90 |
| Notching Capacity | Ømm | 16-90 |
| Belt Size | mm | 100x1250 |
| Motor power | kW/V | 2,2/380 |
| Dimensions (L x W x H) | mm | 1200x600x1150 |
| Weight | kg | 180 |
Our catalogs in PDF format. To view our catalogs, please click here to download the Adobe Acrobat Reader.
TT 90 technical specifications brochure.
