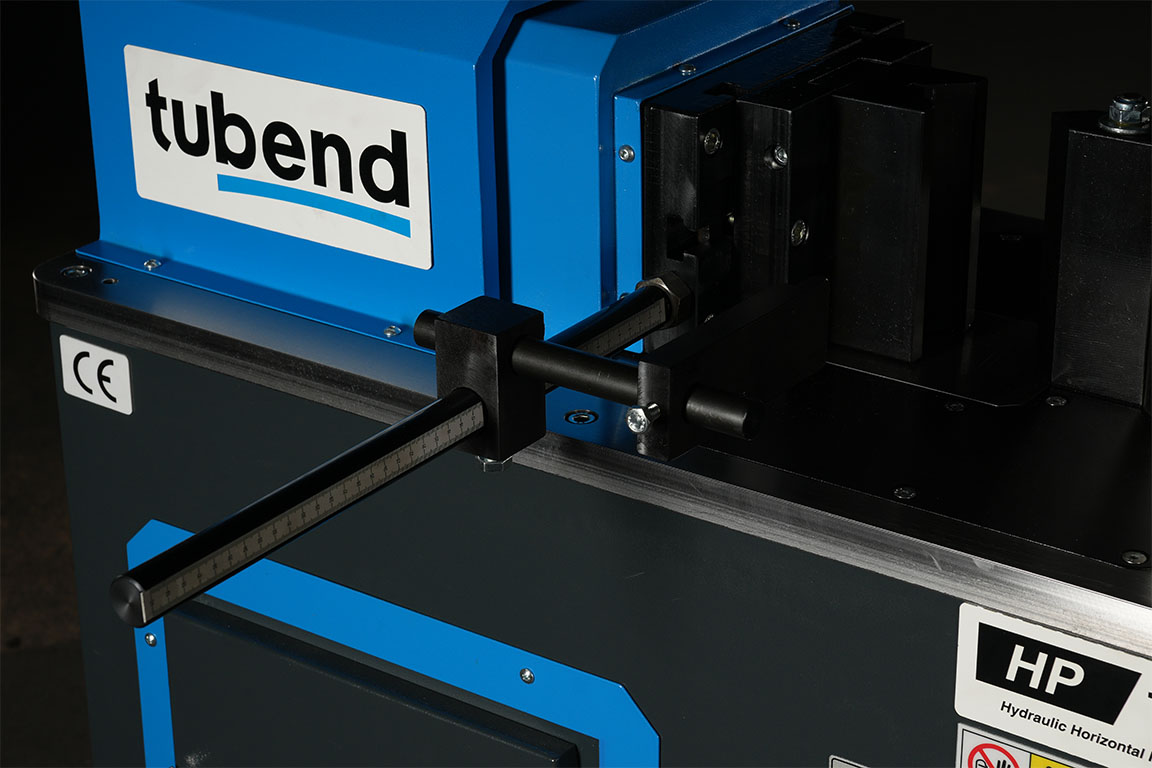

HP 40
HYDRAULIC HORIZONTAL PRESS MACHINE
Tubend HP-Series Hydraulic Horizontal Press Machines can easily make all operations such as bending, cutting, punching, shaping pipe, square profile, sheet metal with standard or special tools.
Standard Accessories
- Ergonomic Tool Clamping Table
- Hydraulic Speed and Pressure Adjustment
- Easily Adjustable Back Gauge
- Induction Hardened Support Pins
- NC Control
- Easy Tool Change
MODEL | HP 40 | |
---|---|---|
Max Pressure At 200 Bars | ton | 40 |
Bending Capacity Flat Material | mm | 250×16 |
Max Stroke | mm | 300 |
Height Of Toolings | mm | 250 |
Working Speed | mm/sec | 10 |
Motor Power | kw | 4 |
Net Weight | kg | 1190 |
Size Of The Machine (LxWxH) | mm | 650x1250x1300 |
Our catalogs in PDF format. To view our catalogs, please click here to download the Adobe Acrobat Reader.
HP10-100 technical specifications brochure.
