HPK 65
3 Rolls Hydraulic Section and
Pipe Bending Machine
Standard Accessories
- Steel construction welded frame
- 3 rolls are powered
- Hardened and ground shafts made of high tensile special steel
- Horizontal and vertical working position

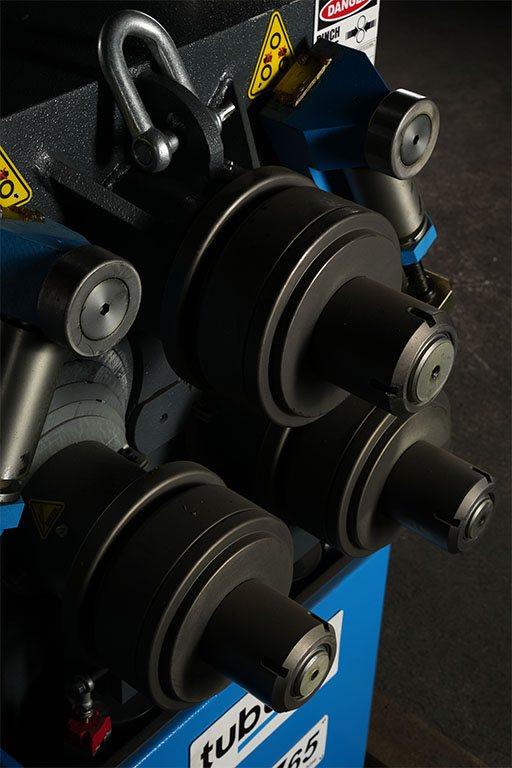

- Hardened standard rolls

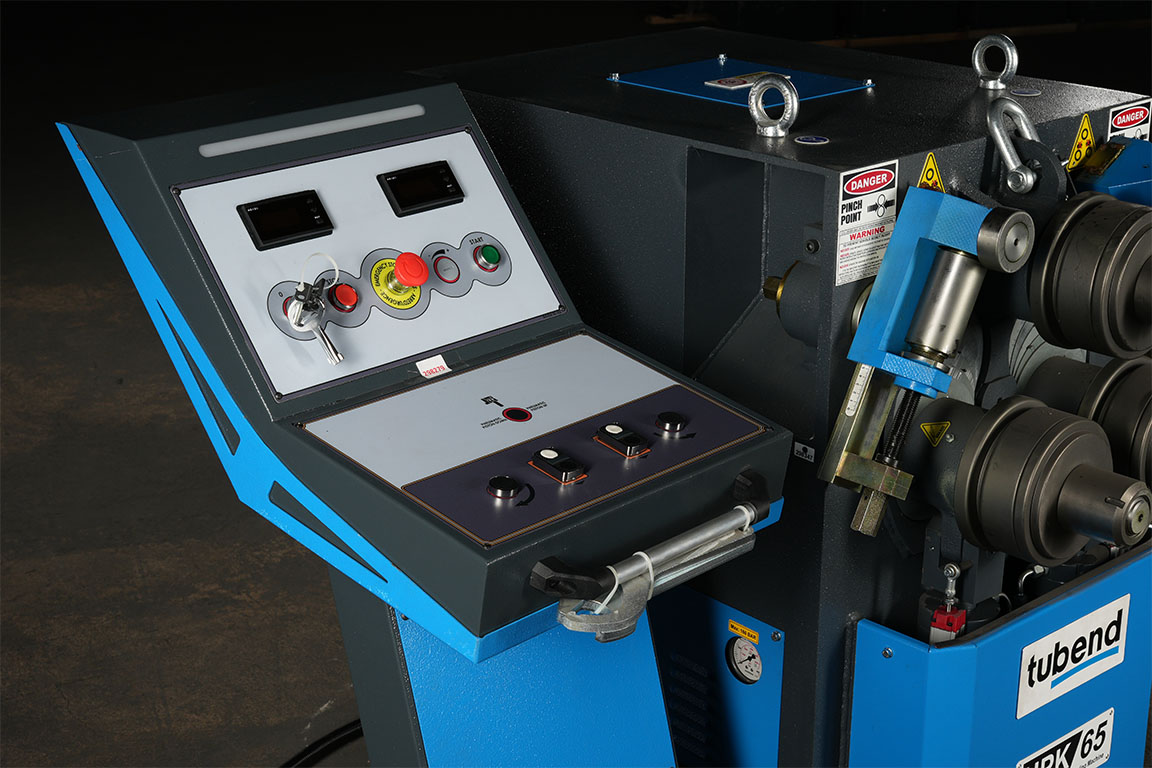

- Mobile control panel
- 3 Axis mechanical lateral angle guide rolls
- Brake motor equipped for the precision bending
- Digital Read-Outs (2pcs)
Optional Equipments
- NC Control
- Hydraulic lateral guide rollers (2 Axis)
- Spiral bending crane
- Special profile rolls
| Model | HPK 65 | |
|---|---|---|
| Upper shaft diameter | Ømm | 60 |
| Bottom shaft diameter | Ømm | 50 |
| Roll diameter | Ømm | 180 |
| Working speed | m/min | 6 |
| Motor power | kW/V | 3.75/380 |
| Dimensions (L x W x H) | mm | 1200x850x1200 |
| Weight | kg | 1000 |
Our catalogs in PDF format. To view our catalogs, please click here to download the Adobe Acrobat Reader.
HPK 65 technical specifications brochure.
