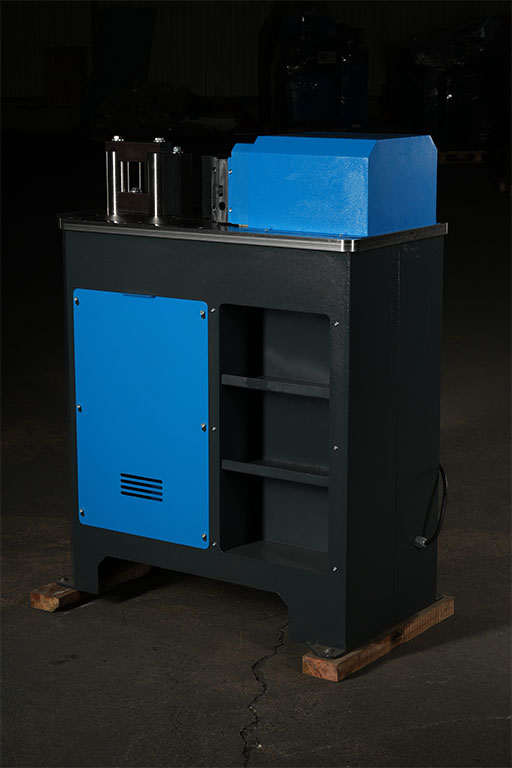

HP 10
HYDRAULIC HORIZONTAL PRESS MACHINE
Tubend HP-Series Hydraulic Horizontal Press Machines can easily make all operations such as bending, cutting, punching, shaping pipe, square profile, sheet metal with standard or special tools.
Standard Accessories
- Ergonomic Tool Clamping Table
- Hydraulic Speed and Pressure Adjustment

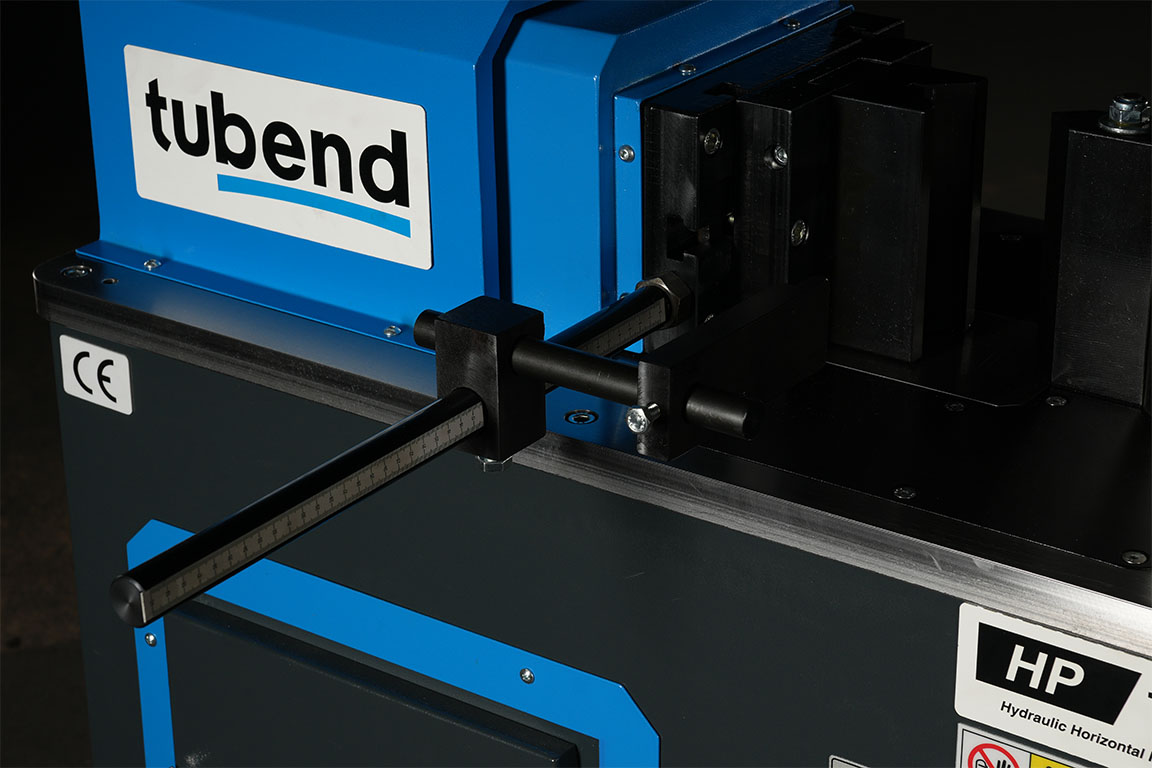

- Easily Adjustable Back Gauge

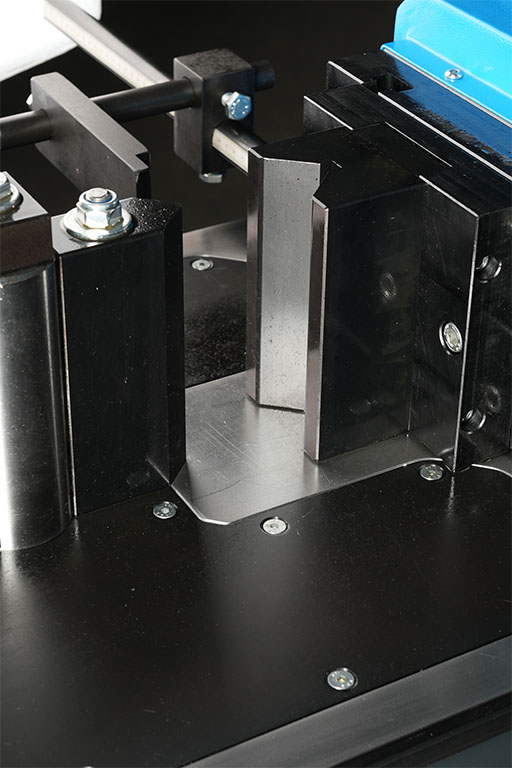

- Induction Hardened Support Pins
- NC Control
- Easy Tool Change
| MODEL | HP 10 | |
|---|---|---|
| Max Pressure At 200 Bars | ton | 10 |
| Bending Capacity Flat Material | mm | 150×6 |
| Max Stroke | mm | 200 |
| Height Of Toolings | mm | 150 |
| Working Speed | mm/sec | 10 |
| Motor Power | kw | 1,1 |
| Net Weight | kg | 400 |
| Size Of The Machine (LxWxH) | mm | 500 x 900 x 1150 |
Our catalogs in PDF format. To view our catalogs, please click here to download the Adobe Acrobat Reader.
HP10-100 technical specifications brochure.
