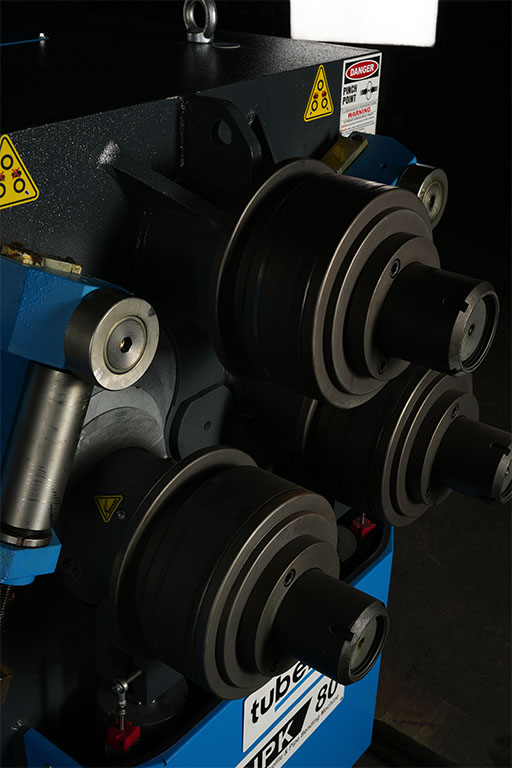

HPK 100
3 Rolls Hydraulic Section and
Pipe Bending Machine
Standard Accessories
- Steel construction welded frame
- 3 Rolls are powered
- Hardened and ground shafts made of high tensile special steel
- Rolls are hardened and ground
- Horizontal and vertical working position
- Hardened standard rolls
- Mobile control panel
- 3 Axis mechanical lateral angle guide rolls
- Brake motor equipped for the precision bending
- Digital Read-Outs (2pcs)
Optional Equipments
- Pipe, tube and profile bending rolls
- Hydraulic lateral guide rolls (2 axis)
- Automation with NC control
| Model | HPK 100 | |
|---|---|---|
| Shaft diameter | Ømm | 100 |
| Roll diameter | Ømm | 315 |
| Working speed | m/min | 7 |
| Motor power | kW/V | 7.5/380 |
| Dimensions (L x W x H) | mm | 2000x1450x1700 |
| Weight | kg | 3650 |
Our catalogs in PDF format. To view our catalogs, please click here to download the Adobe Acrobat Reader.
HPK 100 technical specifications brochure.
