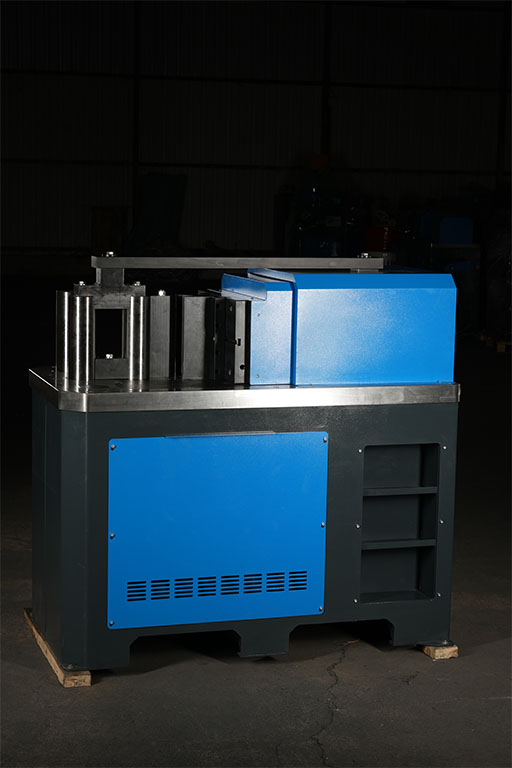

HP 80

HYDRAULIC HORIZONTAL PRESS MACHINE

Tubend HP-Series Hydraulic Horizontal Press Machines can easily make all operations such as bending, cutting, punching, shaping pipe, square profile, sheet metal with standard or special tools.

Standard Accessories

  • Ergonomic Tool Clamping Table
  • Hydraulic Speed and Pressure Adjustment

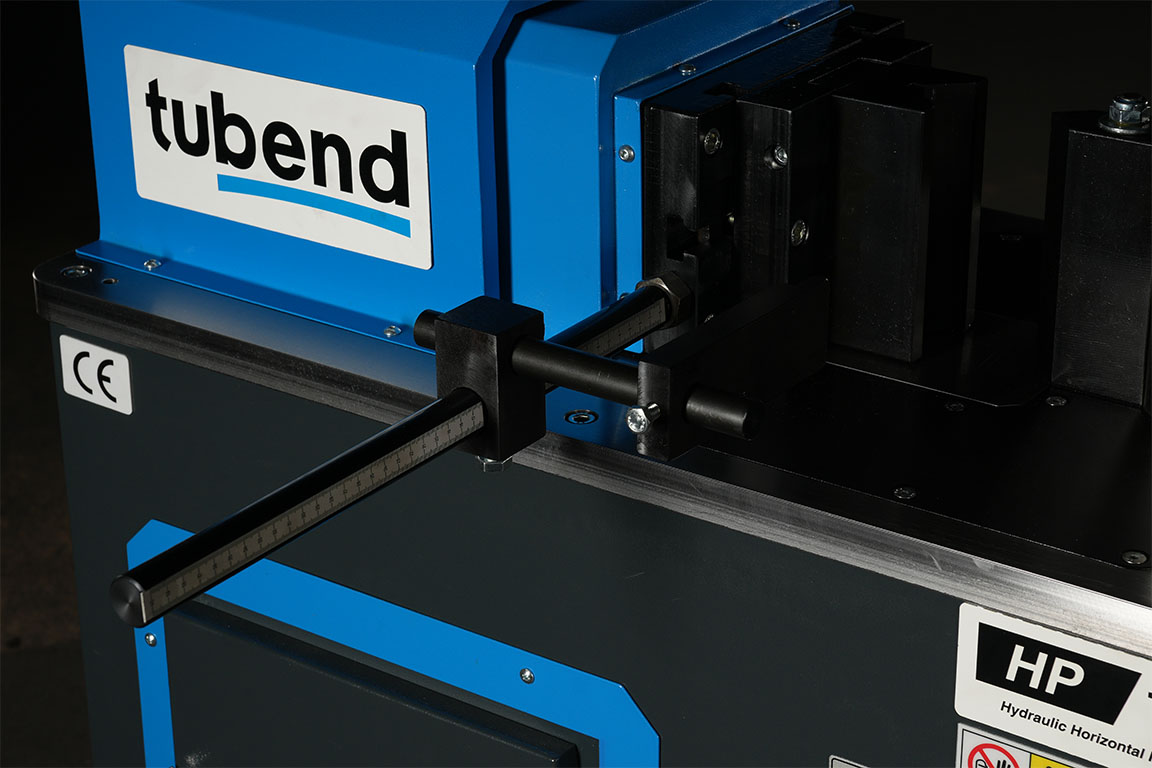

  • Easily Adjustable Back Gauge
  • Induction Hardened Support Pins
  • NC Control
  • Easy Tool Change
MODEL HP 80
Max Pressure At 200 Bars ton 80
Bending Capacity Flat Material mm 300×20
Max Stroke mm 300
Height Of Toolings mm 300
Working Speed mm/sec 10
Motor Power kw 7,5
Net Weight kg 1850
Size Of The Machine (LxWxH) mm 850x1600x1600

Our catalogs in PDF format. To view our catalogs, please click here to download the Adobe Acrobat Reader.

HP10-100 technical specifications brochure.
