TT 90

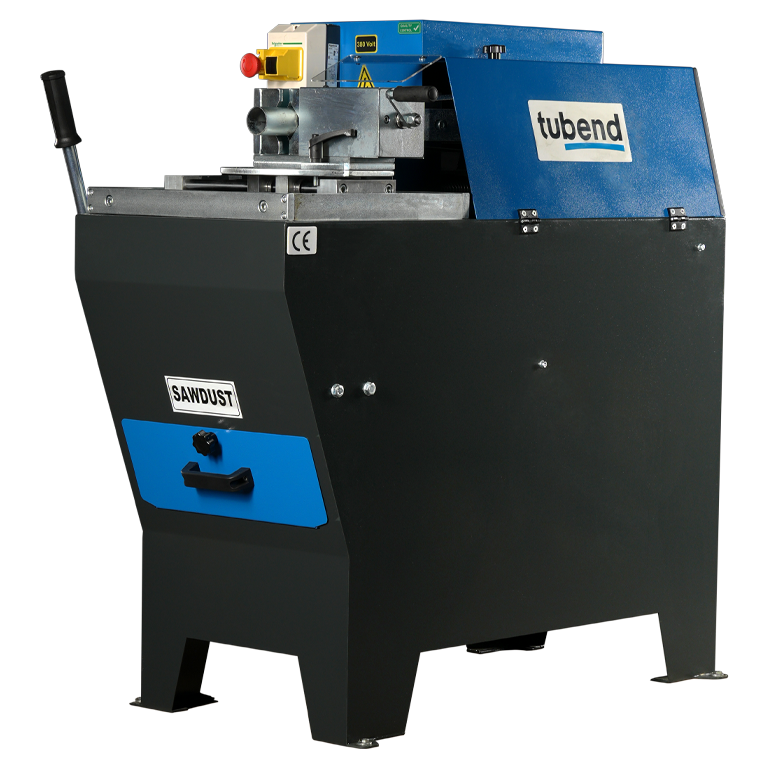

Pipe Notching Machine
Standard Accessories

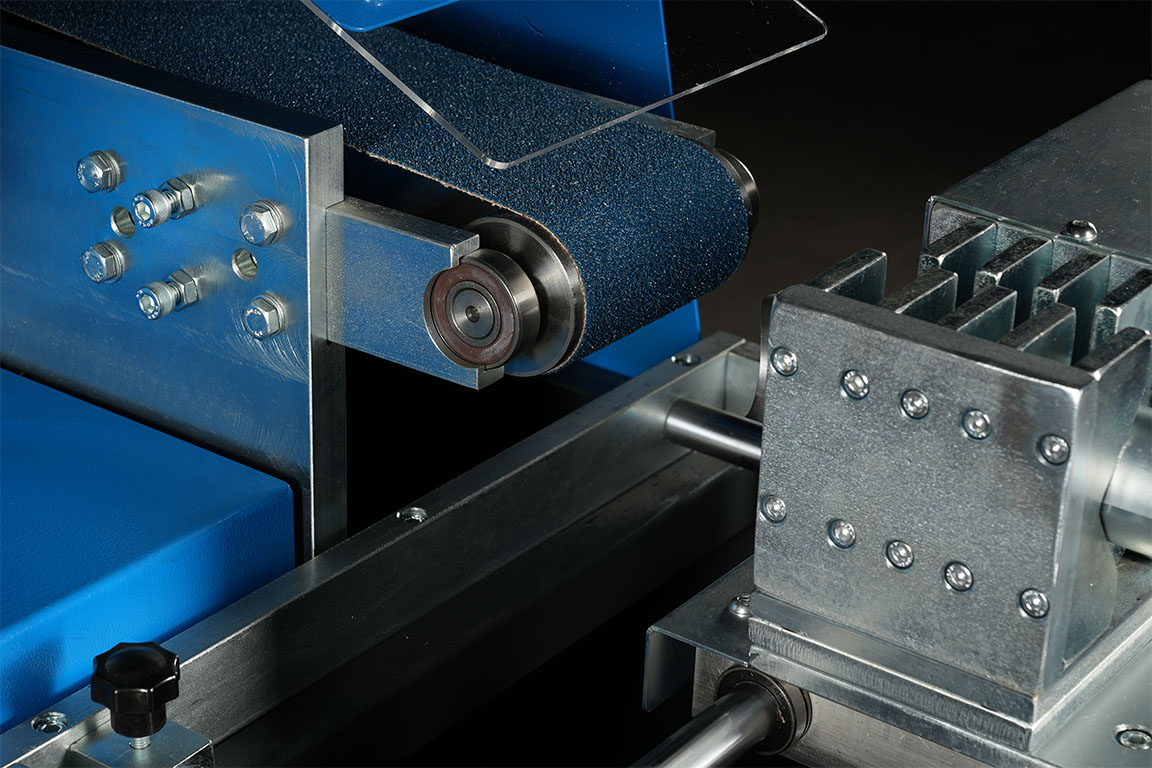

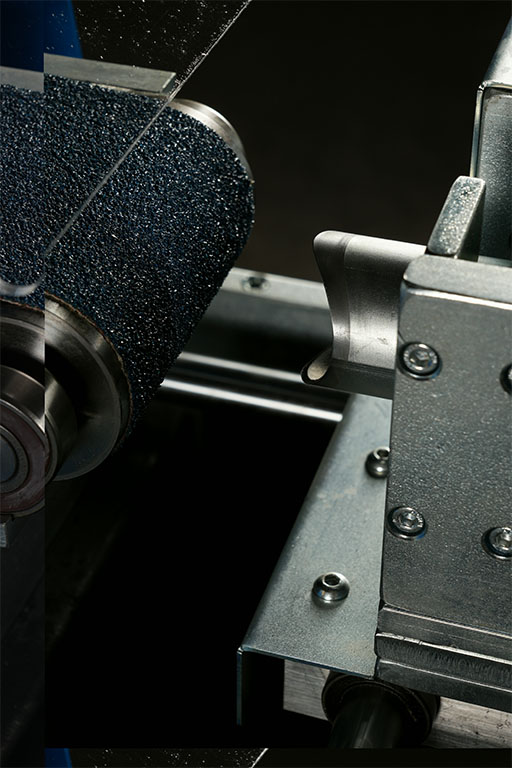

- Notching operation can be done by appropriate roll according to pipe and profile diameter

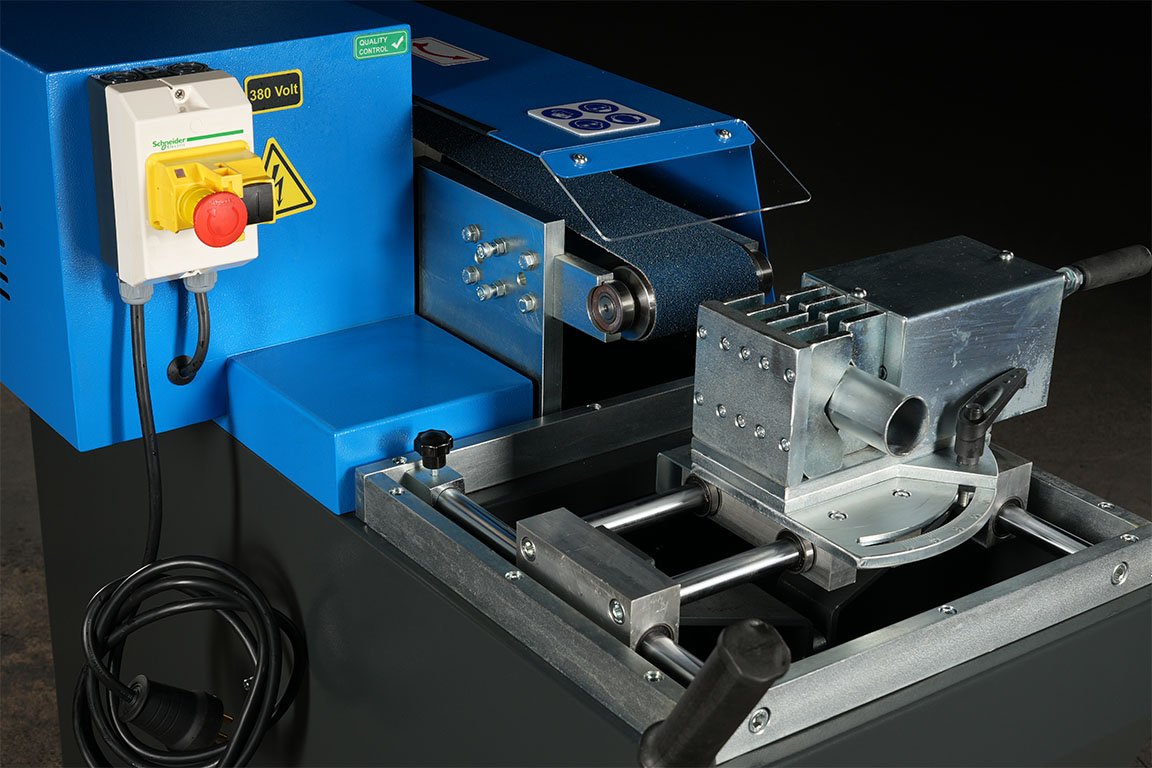

- Quick clamping and loosening by using the movable vise
- Vise has right-left and forward-backward movement feature (Ball bearing system)
- Notching operation can be done up to 50° with angled vise
- Optional pneumatic vice

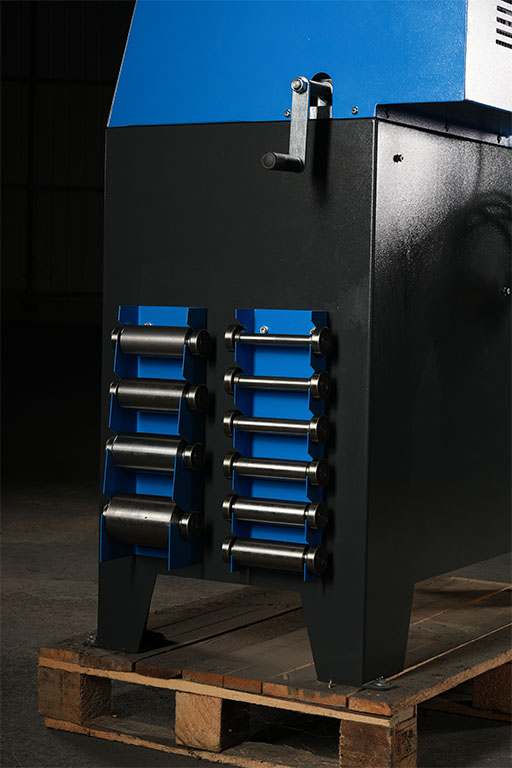

- Ø19, Ø21, Ø25, Ø32, Ø38, Ø42, Ø48, Ø52, Ø60, Ø76 rolls standard
| Model | TT 90 | |
|---|---|---|
| Clamp Capacity | Ømm | 16-90 |
| Notching Capacity | Ømm | 16-90 |
| Belt Size | mm | 100x1250 |
| Motor power | kW/V | 2,2/380 |
| Dimensions (L x W x H) | mm | 1200x600x1150 |
| Weight | kg | 180 |
Our catalogs in PDF format. To view our catalogs, please click here to download the Adobe Acrobat Reader.
TT 90 technical specifications brochure.
