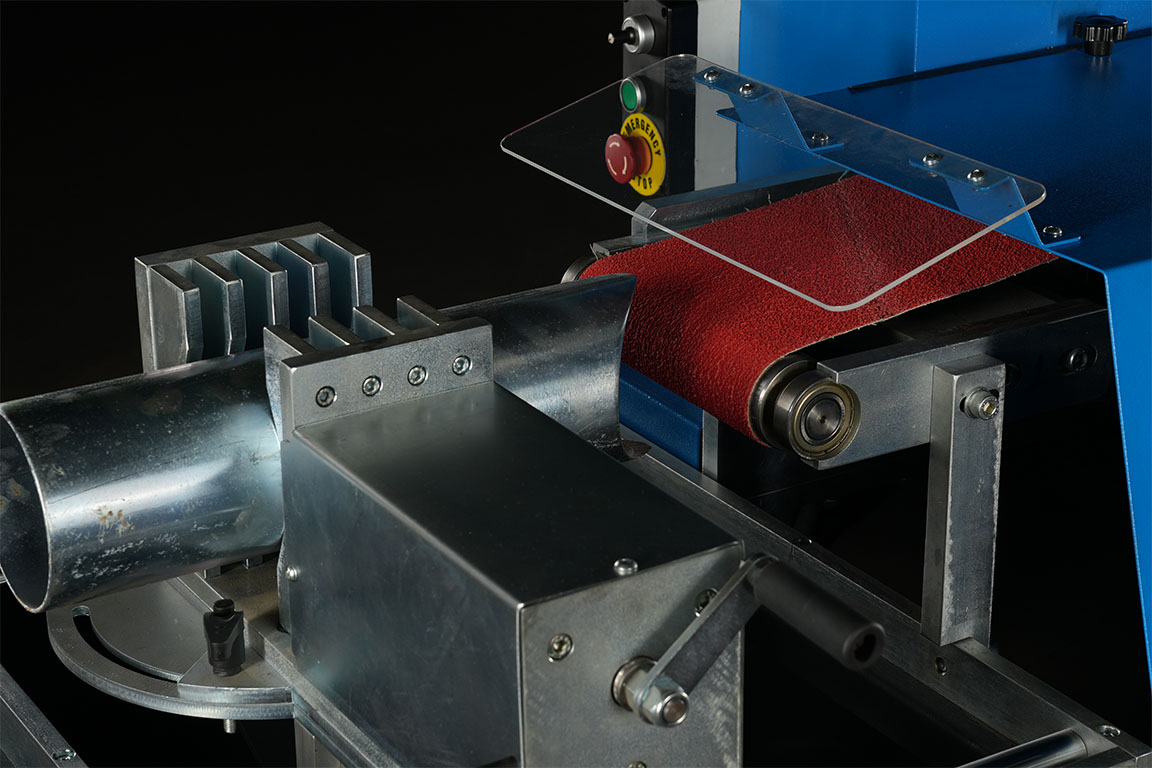

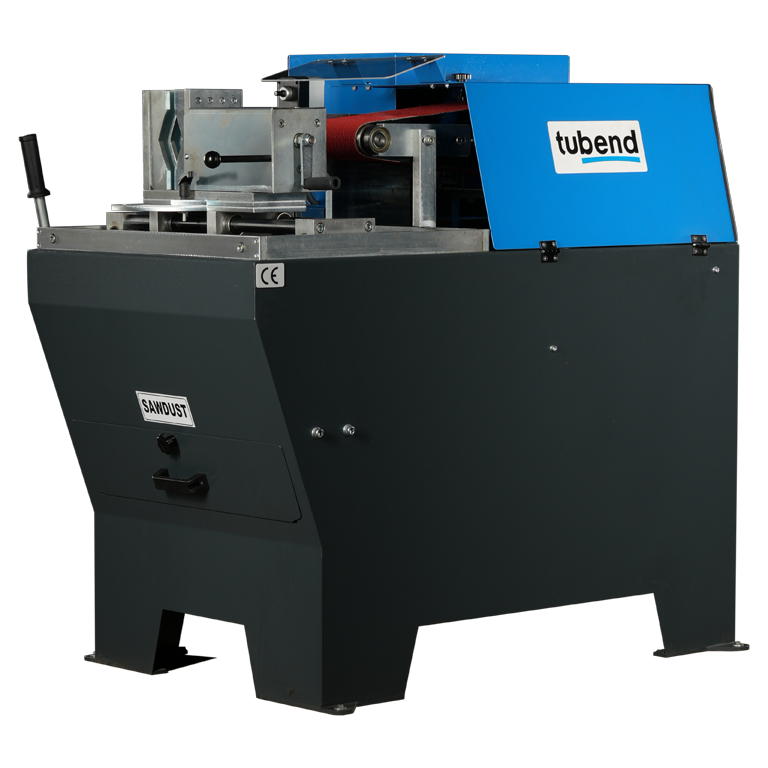

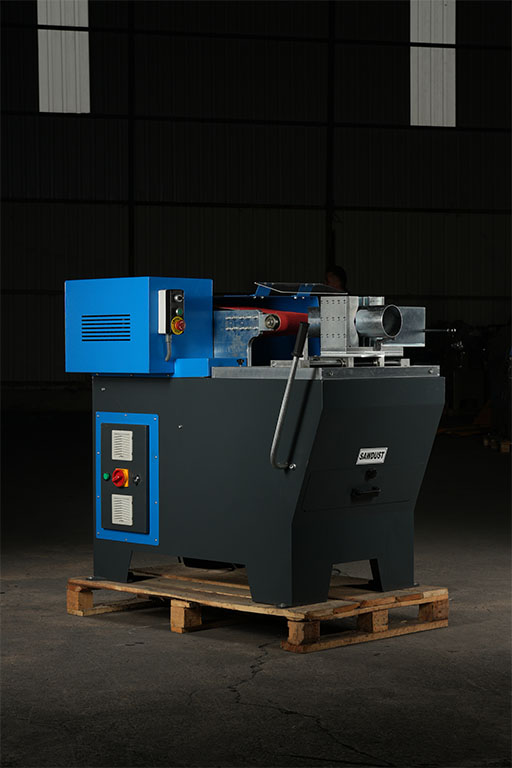

TT 170
Pipe Notching Machine
Standard Accessories
- Ability to tighten and loosen the parts quickly as a result of moving clamp
- Ability of clamp to move right and left sideways
- With movable clamp, notching up to 50° degrees angle
- Adjustable speed with inverter
- Notching operation up to 6″ pipe
- Optional pneumatic vice
- Ø76, Ø90, Ø114 rolls standard
| Model | TT 170 | |
|---|---|---|
| Clamp Capacity | Ømm | 40-170 |
| Notching Capacity | Ømm | 40-170 |
| Belt Size | mm | 200x1400 |
| Motor power | kW/V | 3/380 |
| Dimensions (L x W x H) | mm | 1400x800x1350 |
| Weight | kg | 250 |
Our catalogs in PDF format. To view our catalogs, please click here to download the Adobe Acrobat Reader.
TT 170 technical specifications brochure.
