TB 42

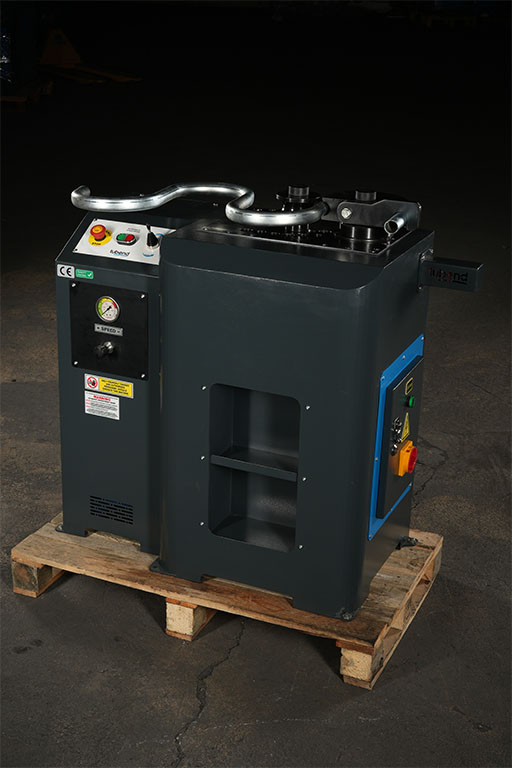

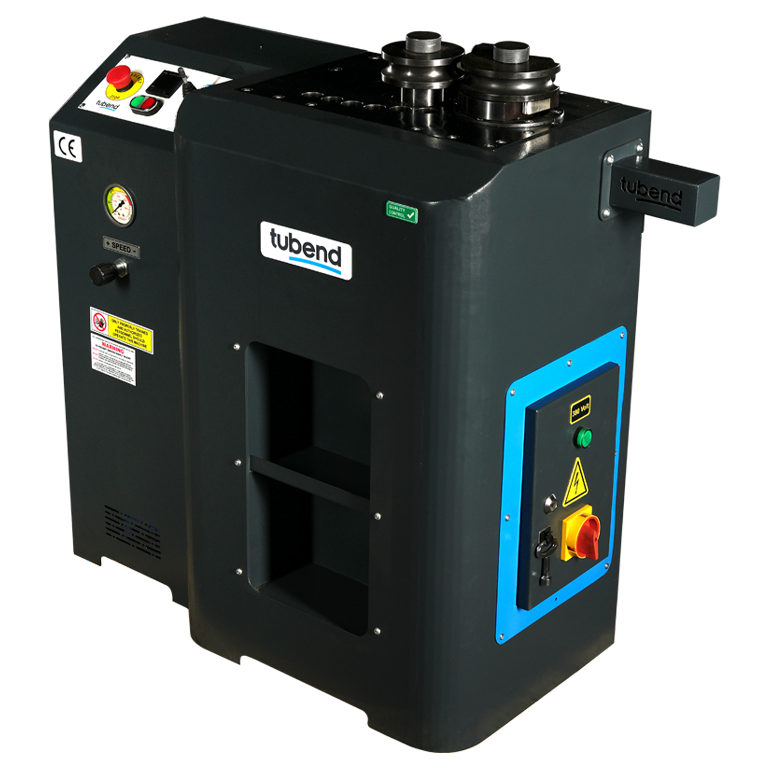

Non Mandrel Pipe and Tube Bending Machine
Standard Accessories

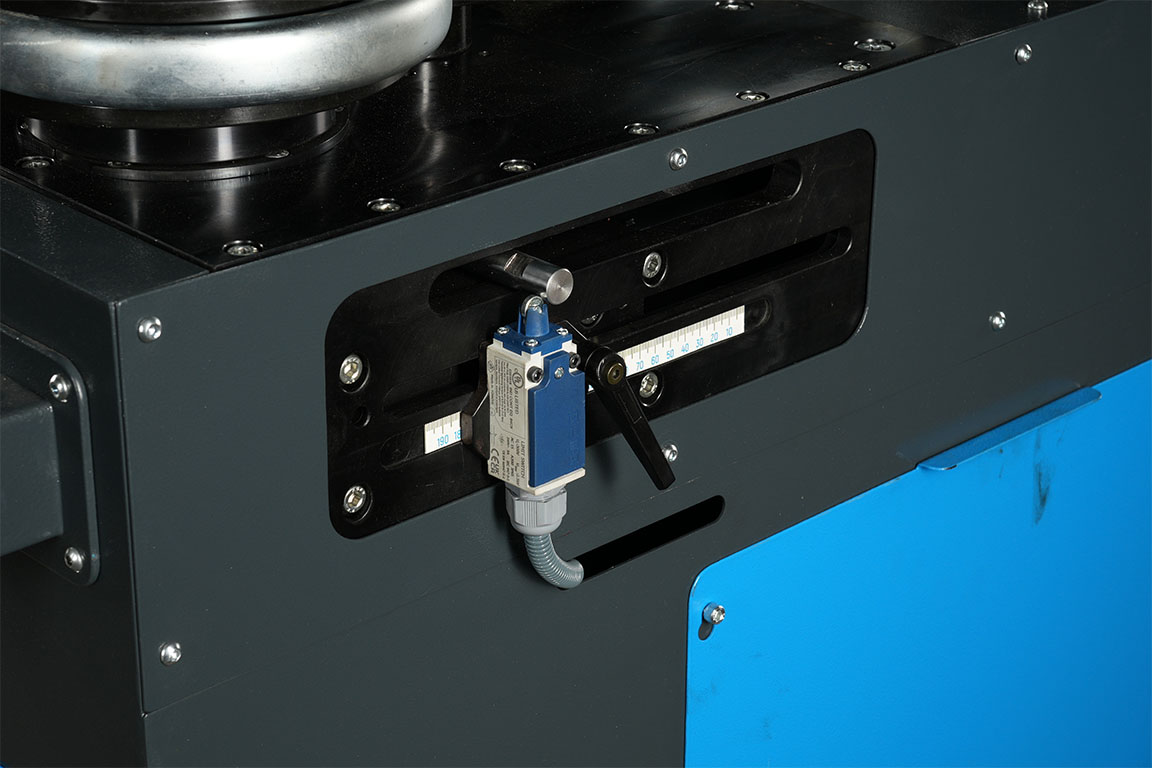

- Manual adjustable angle switch
- Up to Ø42mm x 3mm tube bending possibility
- Holder attachment for supporting the tube during the fixing it on to the machine
- Free holes for mounting the special tools
- Steel welded construction frame

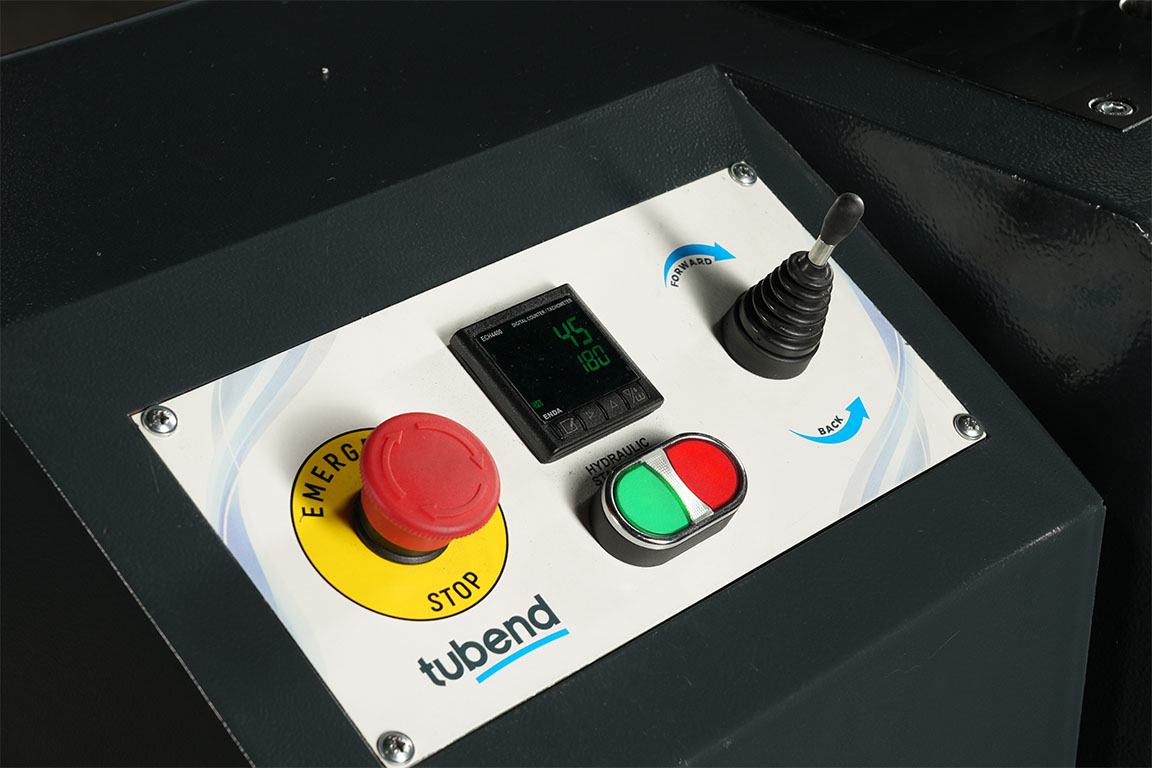

- Emergency stop button
- One set of pipe bending tools included
Optional Equipments
- Digital read-out
- Sets of pipe, tube, section or bar rolls as required dimensions
| Model | TB 42 | |
|---|---|---|
| Max. Pressure at 200 Bar | ton | 15 |
| Oil Tank Capacity | lt | 15 |
| Max Stroke | mm | 150 |
| Working speed | sec/mm | 20 |
| Motor power | kW/V | 1.1/220 |
| Dimensions (L x W x H) | mm | 1250x280x310 |
| Weight | kg | 220 |
Our catalogs in PDF format. To view our catalogs, please click here to download the Adobe Acrobat Reader.

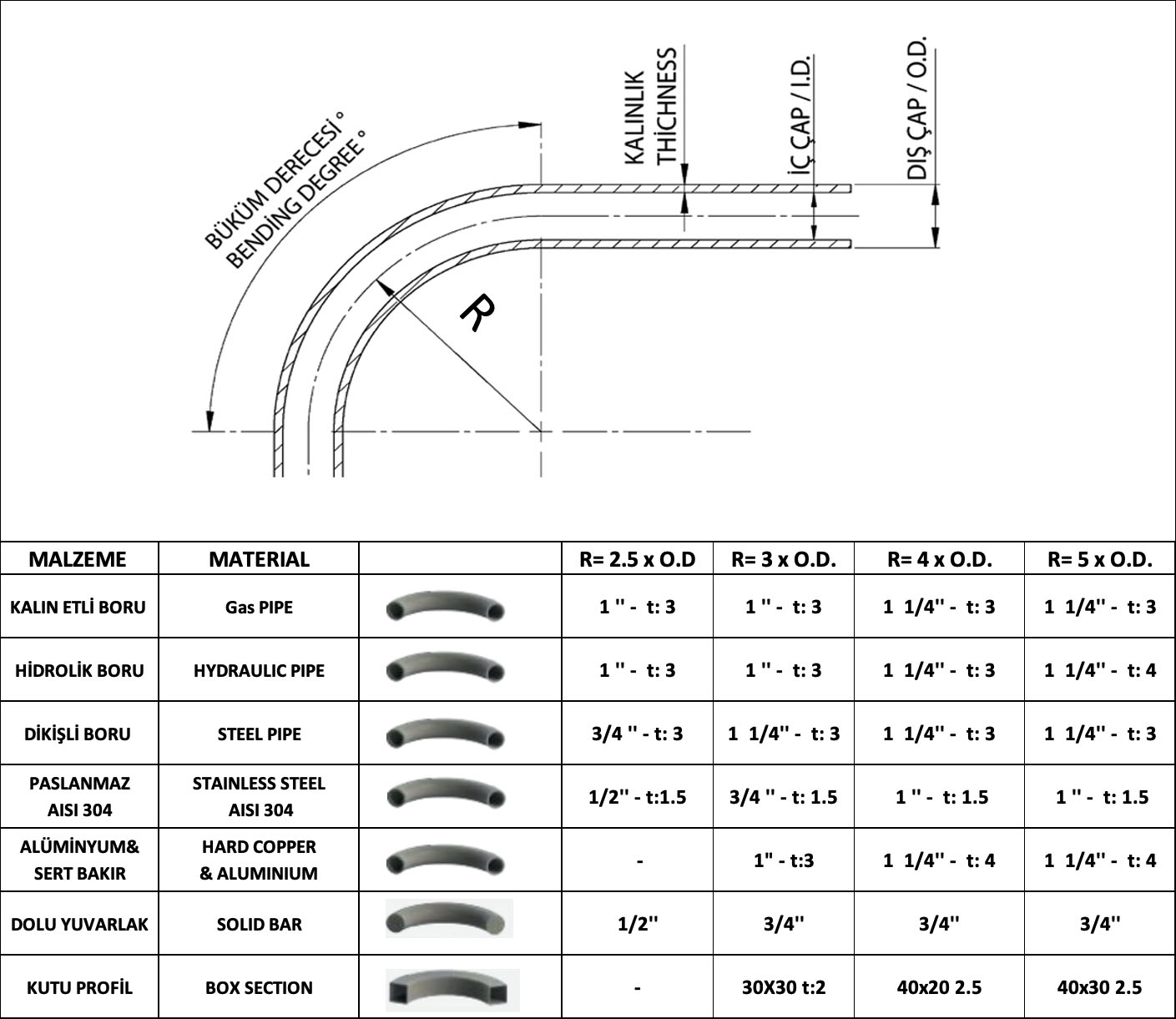

TB 42 technical specifications brochure.
