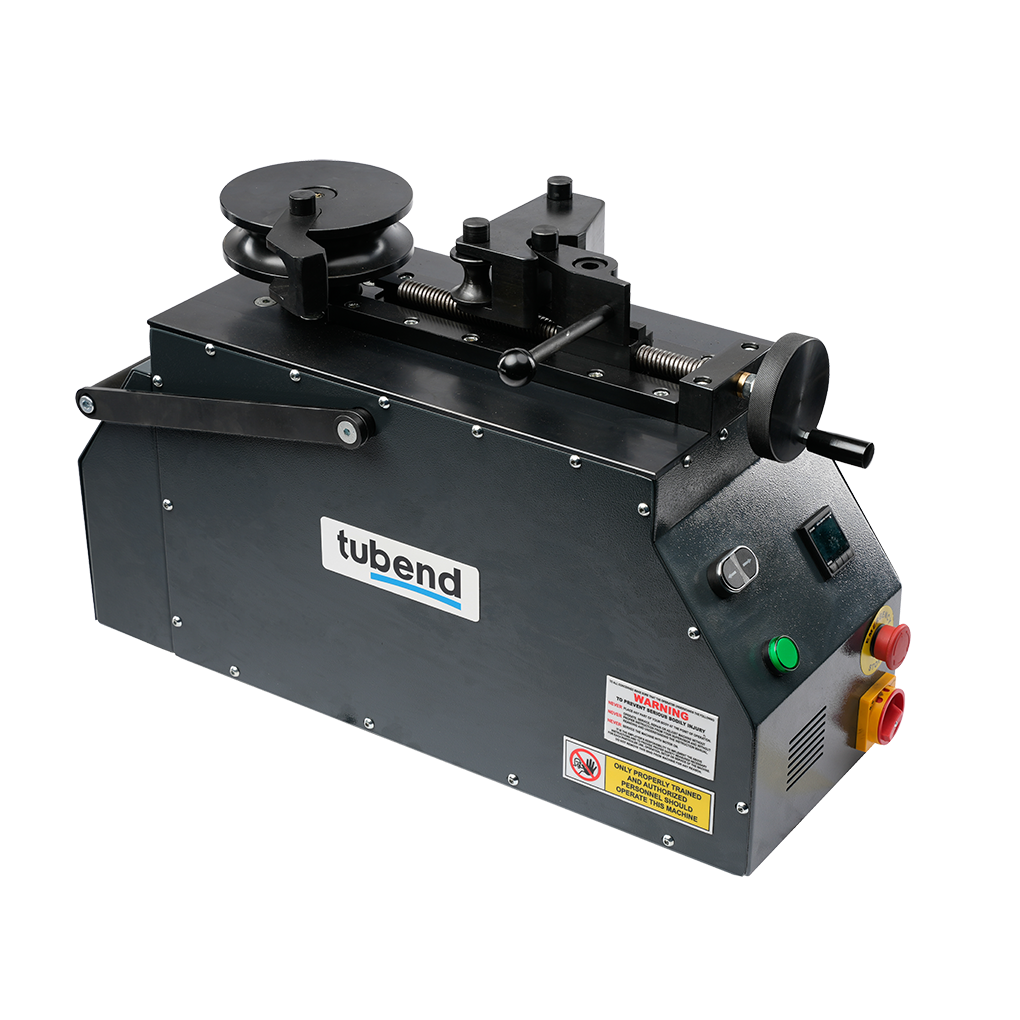

TB 34
Non Mandrel Pipe and Tube Bending Machine
Standard Accessories
- Capable of bending pipes with Ø34 diameter and 3 mm wall thickness up to 180°.
- Equipped with a digital readout.
- The desired bending angle can be limited via the digital readout.
- Gearbox-driven power transmission system.
- Durable steel body construction.
- Brake motor prevents bending errors caused by material springback.
- Detachable carrying handles for easy transport within the production area.
- Includes 1 set of pipe bending dies as standard.
Optional Equipments
- Pipe die options available in custom dimensions.
| Model | TB 34 | |
|---|---|---|
| Max. Bending Capacity | mm | 15 |
| 3xD (Tube diameter) | mm | 15 |
| Output speed | rpm | 1,9 |
| Motor power/Voltage | kW/V | 0.55/380 |
| Weight | kg | 90 |
| Dimensions (L x W x H) | mm | 720x260x460 |
Our catalogs in PDF format. To view our catalogs, please click here to download the Adobe Acrobat Reader.
TB 34 technical specifications brochure.
