Standard Accessories
- NC Control Screen with Memory enables professional and easy operation of the machine
- Up to Ø76mm x 3mm tube bending possibility
- Holder attachment for supporting the tube during the fixing it on to the machine
- Free holes for mounting the special tools
- Steel welded construction frame
- Termic – Power & Reset gauges
- Emergency stop button
- The Machine has 500 programme memory on internal memory
- Minimum bending Radius 2 times the diameter (Ø) of the tube (varies according to the tube Wall thickness and material)
- 1 Set of Pipe Bending Tool Ø 33,7 mm standard included
- Manual book

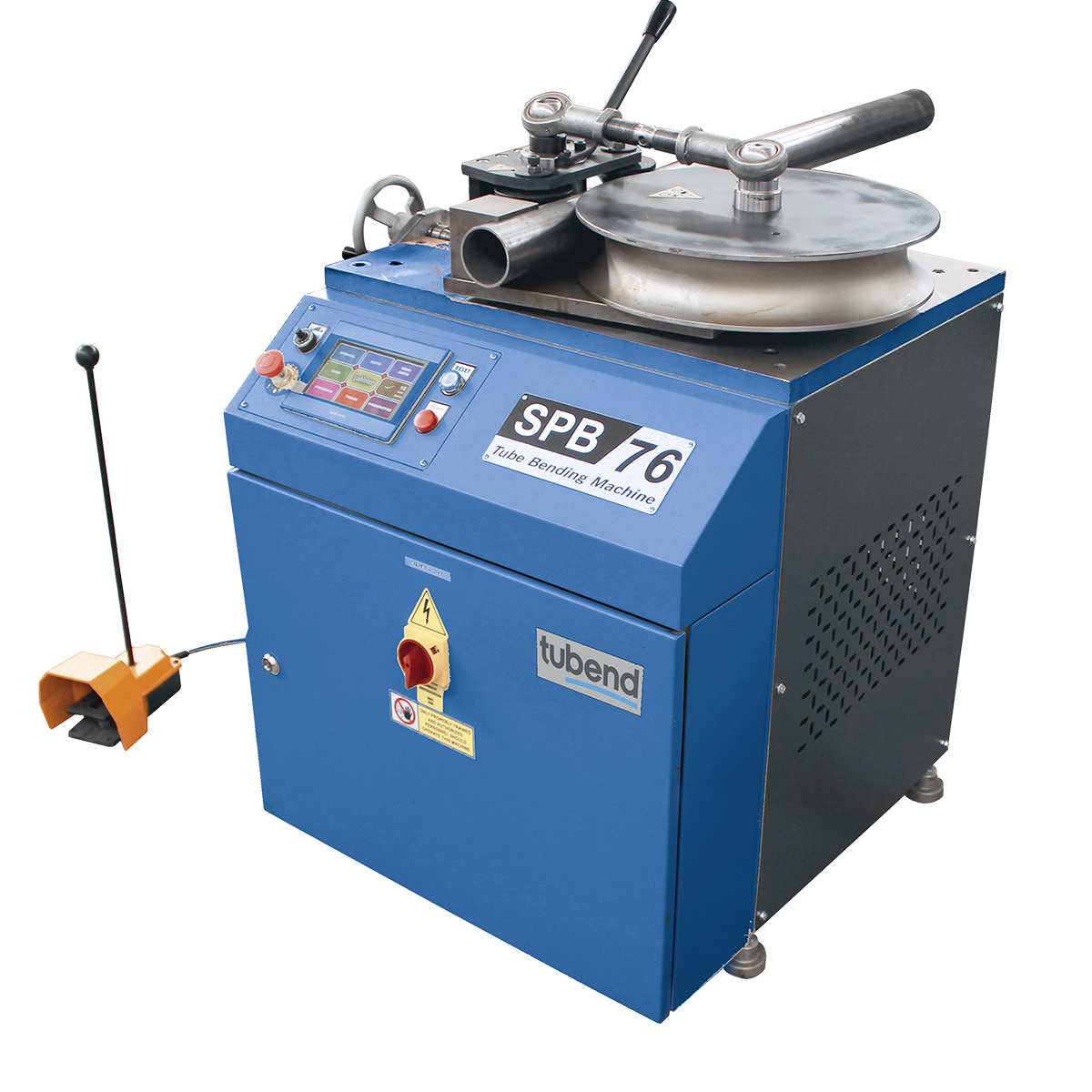

| Model | SPB 76 | |
|---|---|---|
| Boiler tube | mm | 76×3 |
| Mild Steel tube | mm | 70×5 |
| Aluminium tube | mm | 76×6 |
| Round bar (mild steel) | mm | 45 |
| Square tube (mild steel) | mm | 40x40x5 |
| Min. radius | Ømm | R75(Ø16×3) |
| Max. radius | Ømm | R220(Ø76×3) |
| Working speed | m/min. | 0-4 |
| Motor power | kW | 3 |
| Dimensions (L x W x H) | mm | 950 x 850 x 1250 |
| Weight | kg | 500 |
Our catalogs in PDF format. To view our catalogs, please click here to download the Adobe Acrobat Reader.
SPB 76 technical specifications brochure.
