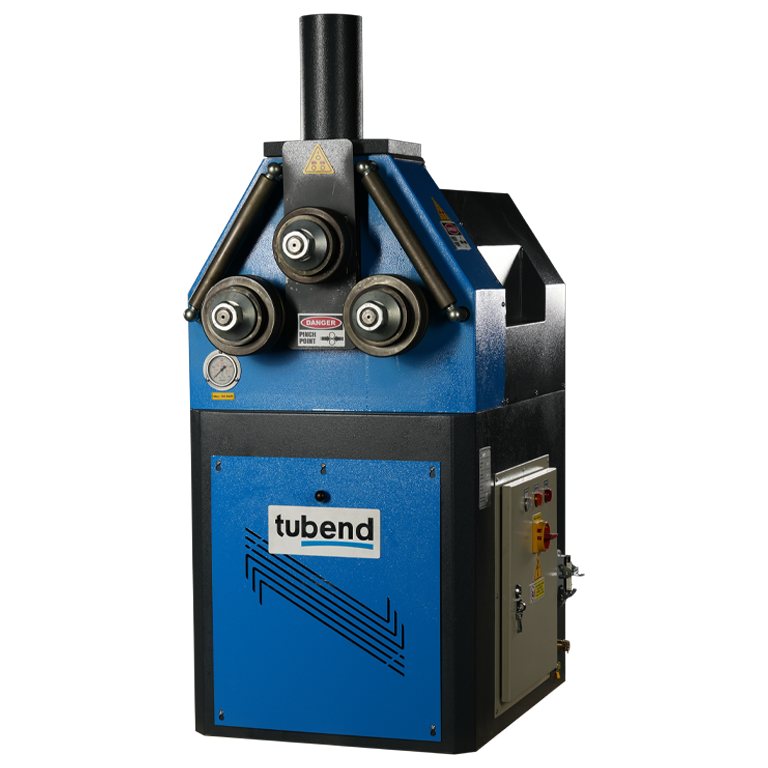

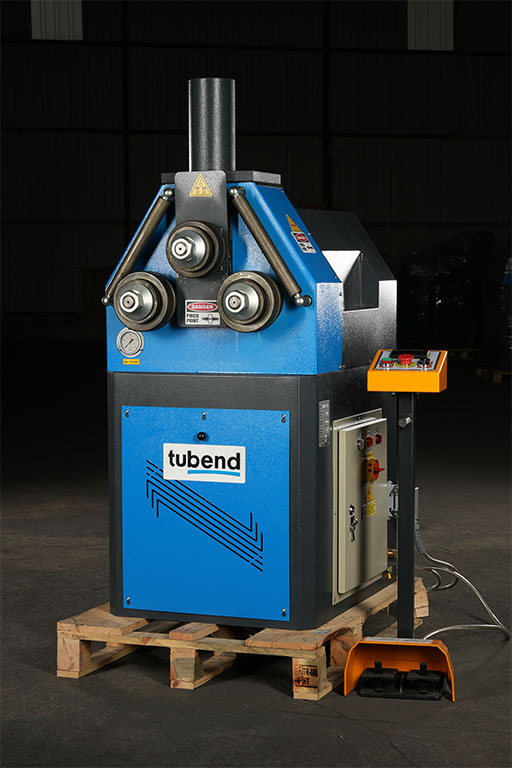

HPK 50
3 Rolls Hydraulic Section and
Pipe Bending Machine
Standard Accessories
- Steel welded construction frame
- 3 rolls are motored driven
- Hardened shafts from special steel material
- Top roll hydraulic moveable up-down
- Horizontal and vertical working position

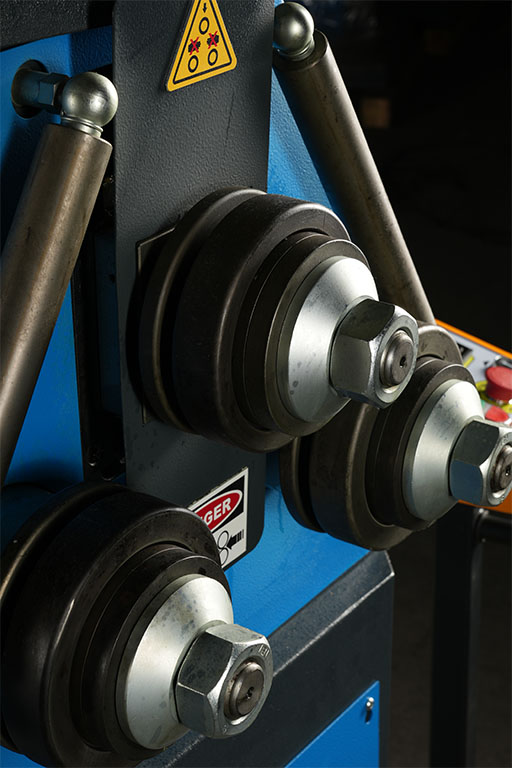

- Standard rolls
- Guide rolls
- Brake motor equipped for the precision bending

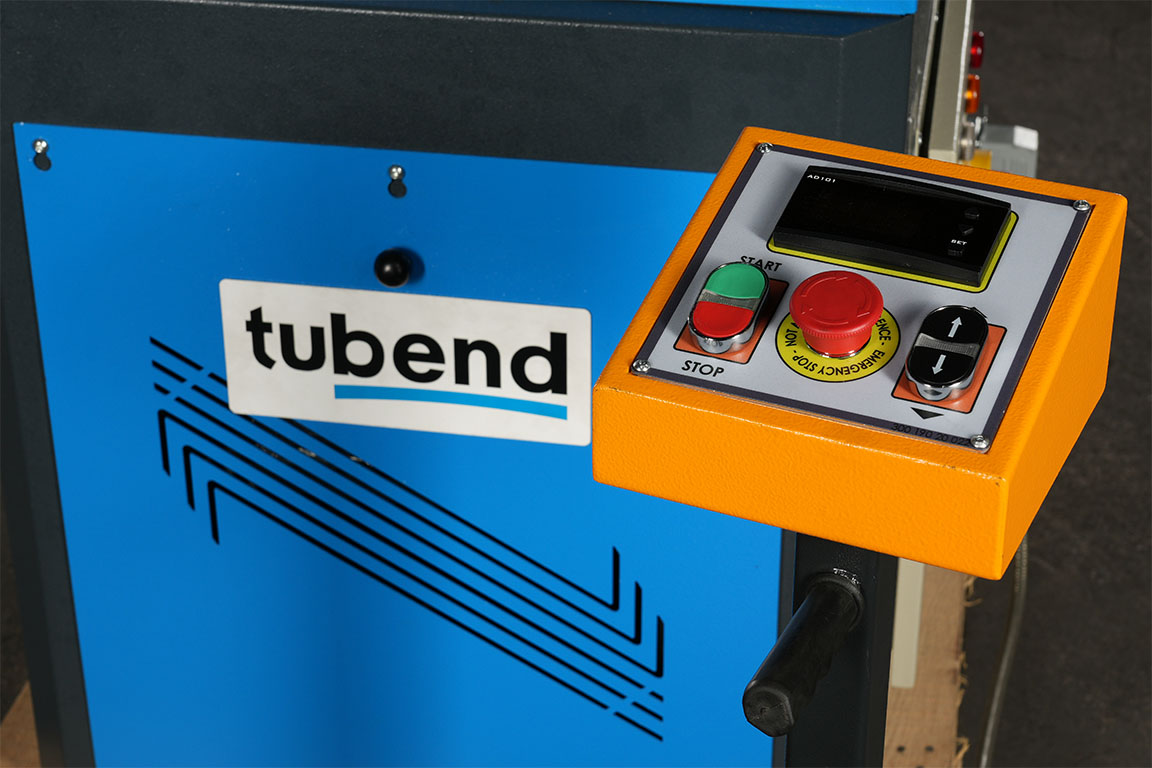

- Mobile control panel
Optional Equipments
- Pipe / Tube bending rolls
- Profile bending rolls
- Angle bending rolls
- Digital read-out
- Optional lateral angle guides
- Special plastic rolls to bend aluminium and stainless steel
| Model | HPK 50 | |
|---|---|---|
| Shaft diameter | Ømm | 50 |
| Bottom rolls diameter | Ømm | 162 |
| Upper rolls diameter | Ømm | 152 |
| Working speed | m/min | 4,5 |
| Motor power | kW/V | 1,47/380 |
| Dimensions (L x W x H) | mm | 1000x750x1600 |
| Weight | kg | 510 |
