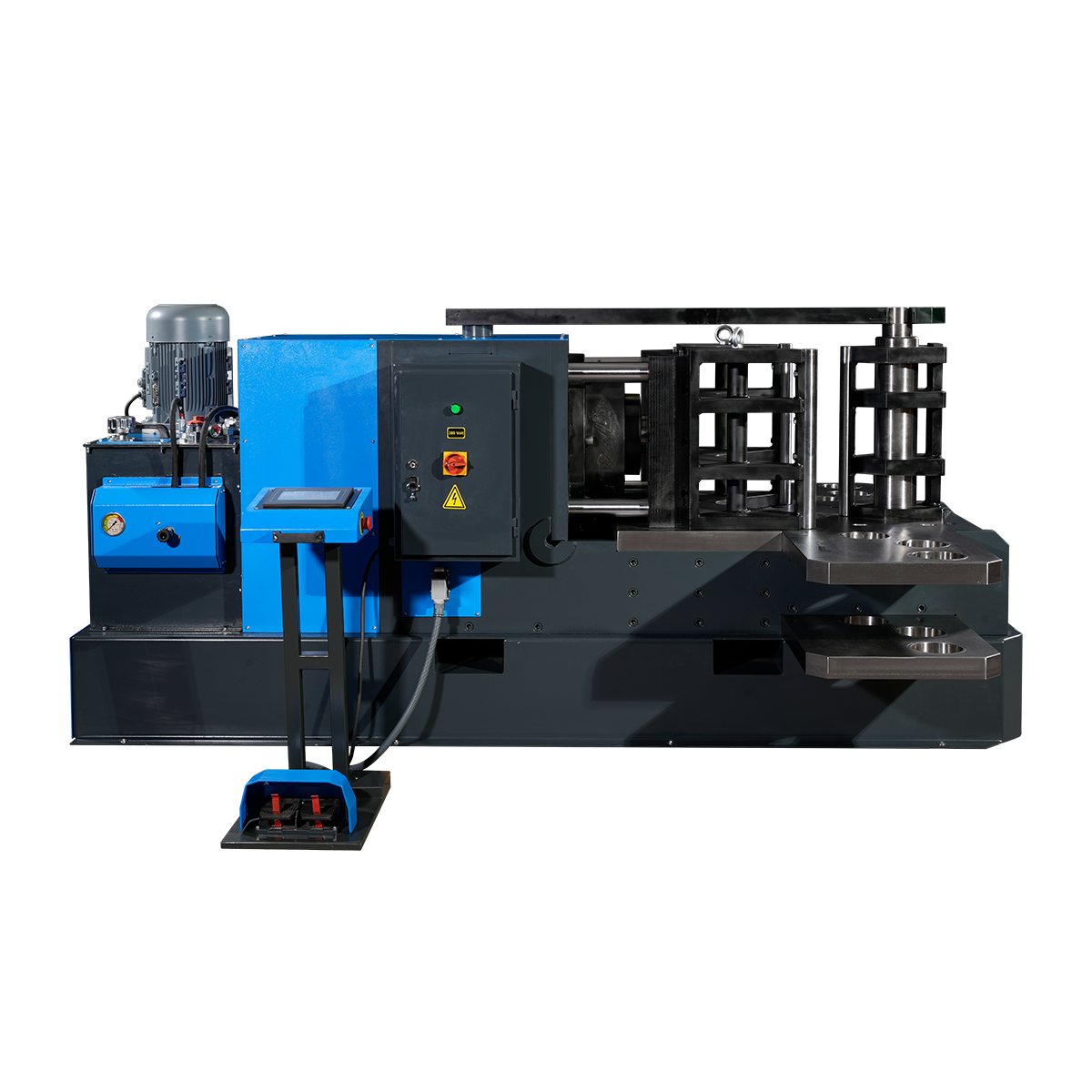

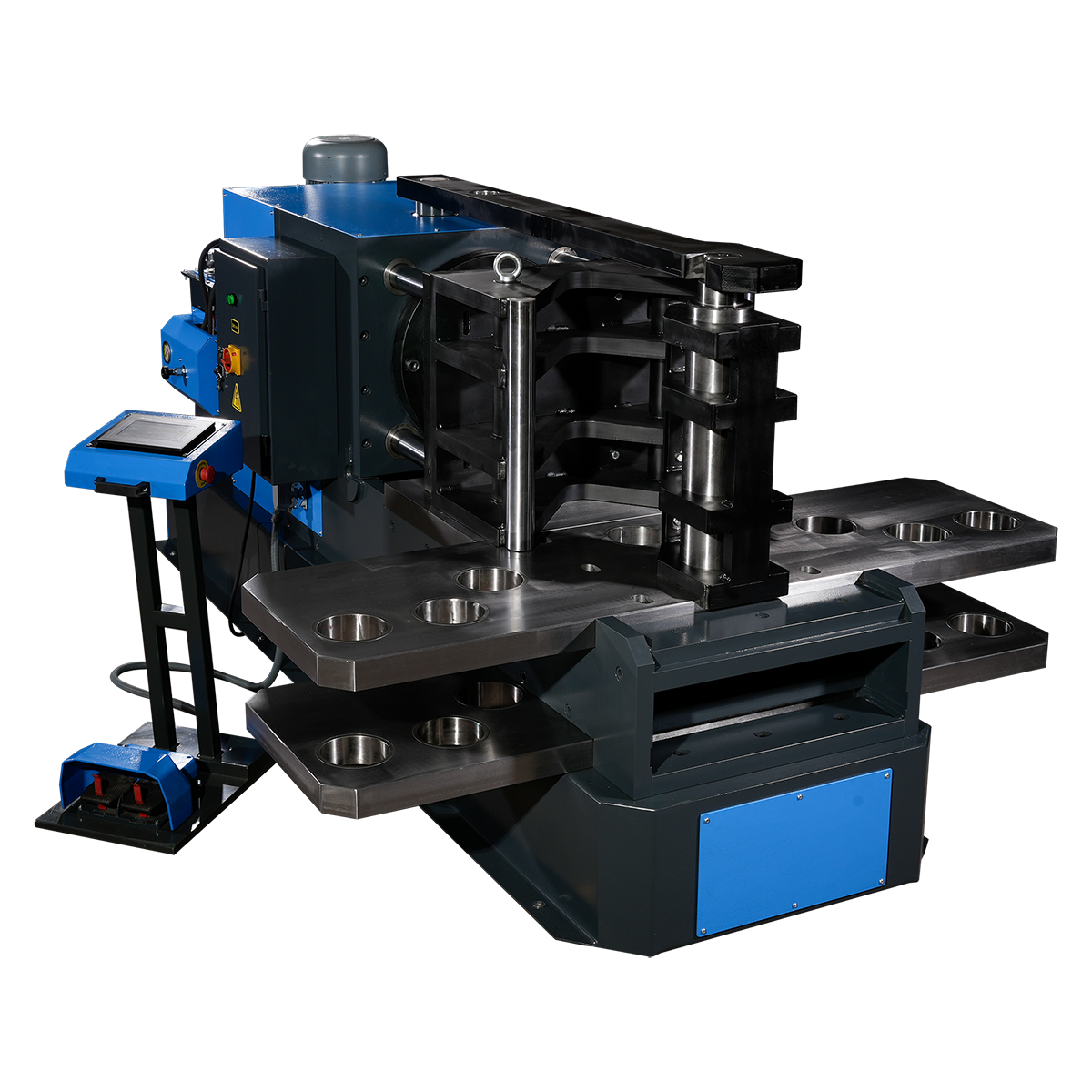

HP 120
Hydraulic Horizontal Press
Standard Accessories
- Hydraulic speed and pressure adjustment.
- NC control unit.
- Robust steel body construction.
- Hardened support columns.
- Multiple heat-treated support holes for straightening operations and mounting various tools and attachments.
- T-slot clamping table for securing different tools and dies.
- Upper support brace to prevent flexing.
- Ergonomic, high-profile design suitable for processing large and long workpieces.
Optional Equipments
- Custom die design and manufacturing tailored to the specific job.
- For special requests, revisions, and custom die requirements, please contact our company.
| Model | HP 120 | |
|---|---|---|
| Maximum Pressure | ton | 150 |
| Flat material bending capacity | mm | 40x500 |
| Max. Piston Stroke | mm | 500 |
| Tool Height | mm | 500 |
| Support Diameter | m/sec | 10 |
| Working Speed | m/sec | 10 |
| Return Speed | m/sec | 10 |
| Motor Power / Voltage | kW/V | 5.5/380 |
| Weight | kg | 3600 |
| Dimensions (L x W x H) | mm | 2760x1750x1275 |
Our catalogs in PDF format. To view our catalogs, please click here to download the Adobe Acrobat Reader.
HP 120 technical specifications brochure.
